Delivery beds Optima
№ - 100000009
Merivaara Corp.

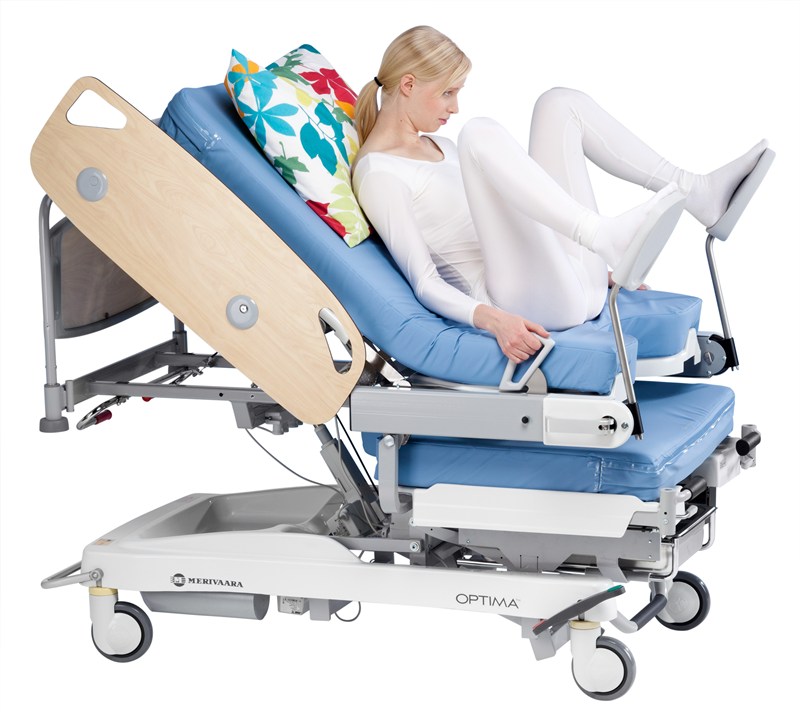

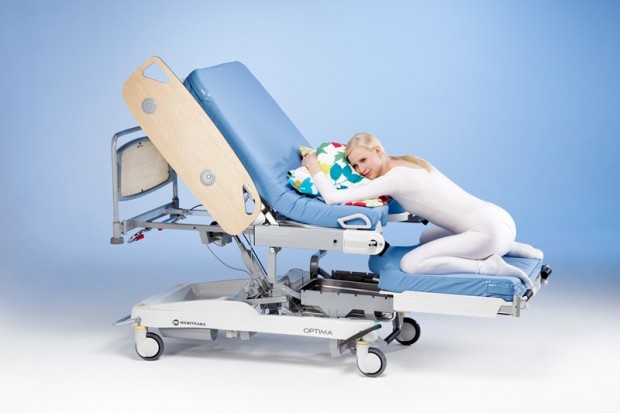

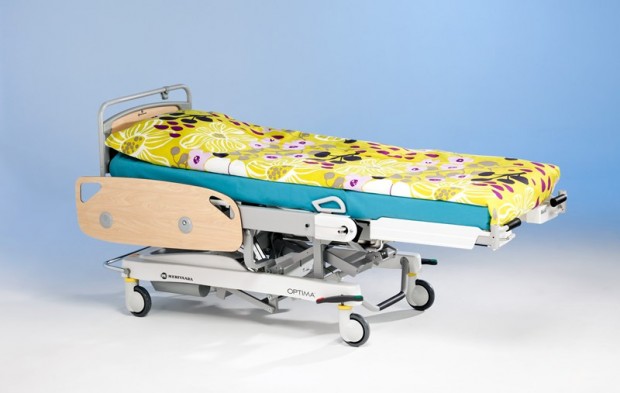

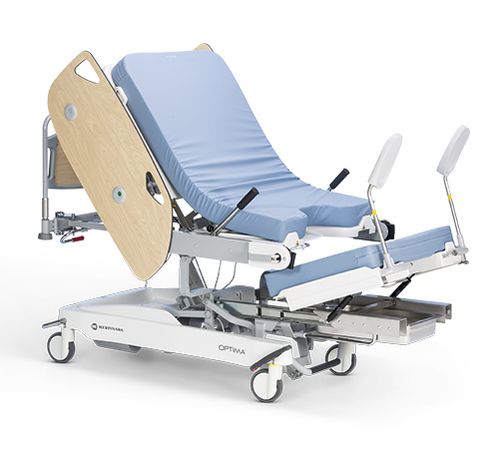

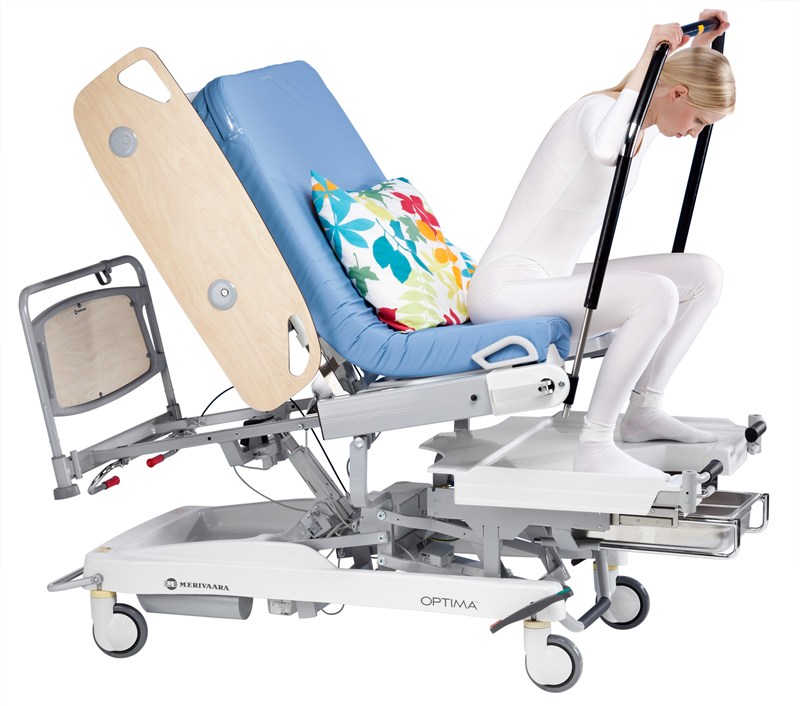

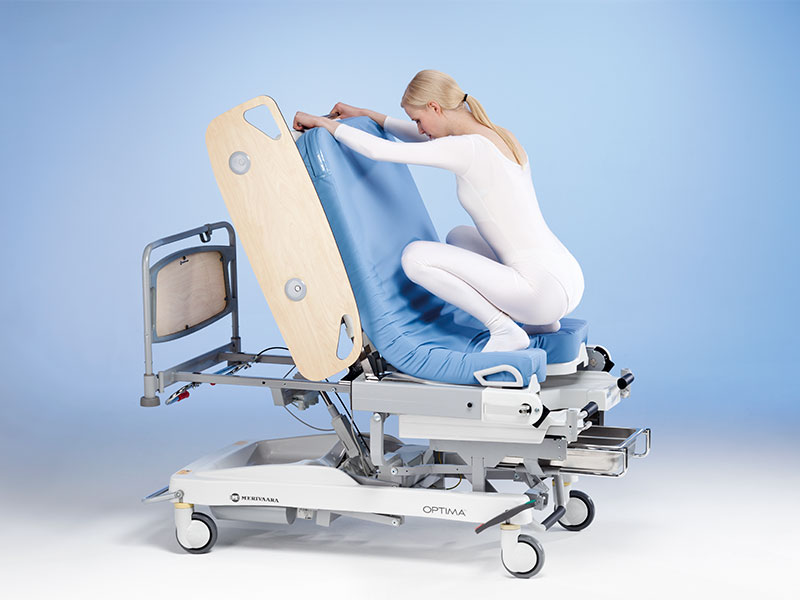

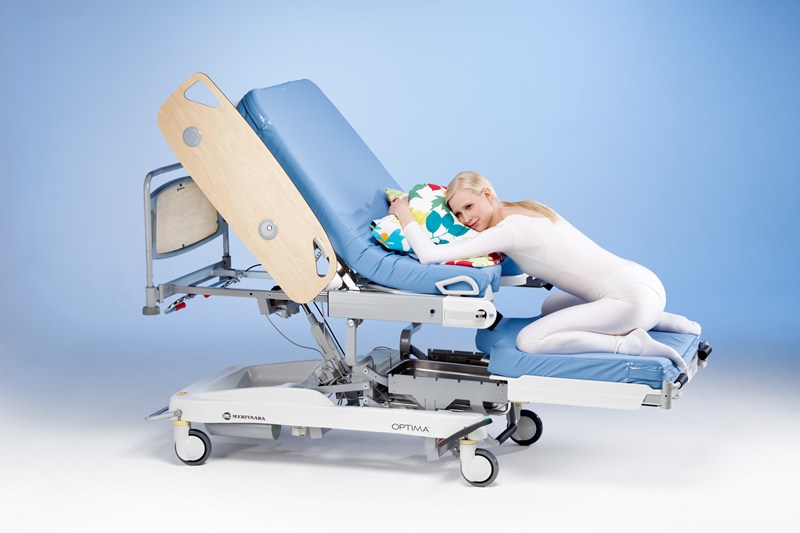

Optima 4-motor is the most advanced model offering several electric adjustments for better ergonomics as well as safety features. This model has leg section with height adjustment and tilting. These features provides enhanced possibilities to use various positions during labour.
Optima 2-motor is quite similar to the 4-motor model,but adjustments for Trendelenburg and leg section are manual in this model. The leg section moves manually in/out under the seat section, but doesn’t feature height adjustment or tilting. Otherwise it's as ergonomic and safe as the 4-motor model.
Optima hydraulic is designed to ensure the best possible usage for the product without the need for electricity power supply. All adjustments in this model are manual. The height of the bed can be adjusted with a hydraulic pedal, the back section adjustment is gas-spring assisted, and the leg section slides manually in and out, just like in the other models
| Title | 4-motor | 2-motor | hydraulic | |
| Width | 1000 mm | 1030 mm | 1030 mm | |
| Mattress base (width) | 780 mm | 780 mm | 780 mm | |
| Height adjustment min - max | 580 - 955 mm | 590 - 955 mm | 570 - 935 mm | |
| Length | 1650 - 2210 mm | 1320 - 2010 mm | 1520 - 2110 mm | |
| Weight | 165 kg | 118 kg | 114 kg | |
| Max. patient weight | 190 kg | 190 kg | 190 kg | |
| Safe working load (SWL) | 230 kg | 230 kg | 230 kg | |
| Trendelenburg | 12 ° | 12 ° | 12 ° | |
| Back section adjustment | 0 - 78 ° | 0 - 67 ° | 0 - 60 ° | |
| Castors size | 150 mm | 150 mm | 150 mm | |
| Mattress base (sections) | 3 pcs | 3 pcs | 3 pcs |
