Camera System 1/3 CCD

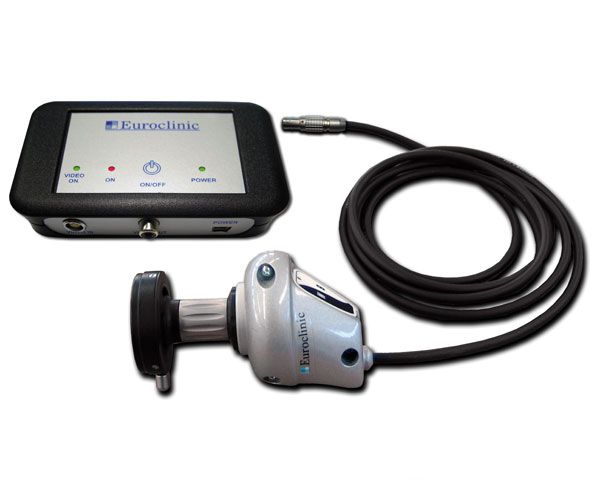

The camera EVCS ED420 (1/3” CCD) is one of the newest project in the Diagnostics-Imaging line of Euroclinic production and
it is a simple camera system with direct connection to any PC or Notebook by USB port and to an Analog Monitor by
VideoComposite input. The low weight, the elegant design, the highly appreciated ergonomical hand-piece, the easy
functioning, the quality of the components are all peculiar features that make this small camera for endoscopy a friendlydoctor
equipment able to satisfy all professional expectations without neglecting its very competitive market value.
It is possible to use the camera after having installed the drivers by means of a CD-Rom. The compact and ergonomical shape
of the hand-piece allows a comfortable grip and an easy access to the button that operates the basic function of the “White
Balance” system . The camera can be combined to the Software EDM_Videocapture for the audio-video recording and
snapshots capture by using a wireless pedal and therefore with no need to use one’s hands.
The camera kit is composed of:
1. Camera Head (“C” type)
2. TV Adapter (f 21mm)
3. CD-Rom for driver installation with Electronic User Manual
Technical data:
Image Sensor: 1/3” interline CCD
Signal format: PAL
CCD model: ICX409AK Sony
Number of Pixel: 752(H) x 582(V)
Scanning System: 2:1 Interlace
Synchronization: Internal
Horizontal Frequency: 15,625 kHz
Vertical Frequency: 50,00 Hz
Horizontal Resolution: 520 TV lines
Video Output level: 1.0p-p, 75 ohm(Vido 0.714Vp-p, Sync. 0.286Vp-p)
Burst level: 0.286 Vp-p
S/N ratio: 48dB or better (gamma=1, AGC=off, Aperture=off, Lumin. signal)
Min Illumination: 0.05 lux (Video Output 50%, AGC On, F1.2) at Frame Integr. x 8t
Y correction: 0.45 or 1.0
AGC: +18 dB Max
Iris control: Electrical Iris / lens Iris (DC control)
Electrical Shutter: 1/50 to 1/120,000 sec
Main Functions
BLC: Calculated besides High-light level area
Mirror: Horizontal and Vertical (Flip function)
Sense up: On/Off
White balance: ATW/AWB (one push)
Connect I/F: Serial I/F
Power Supply Voltage: DC12V ± 1V
Power Supply Current: Max 150mA (at DC +12V)
Storage temperature: -20°C to +60°C
Storage humidity: Max 90% No condensation
Dimension: 32(W) x 32(L) without lens
