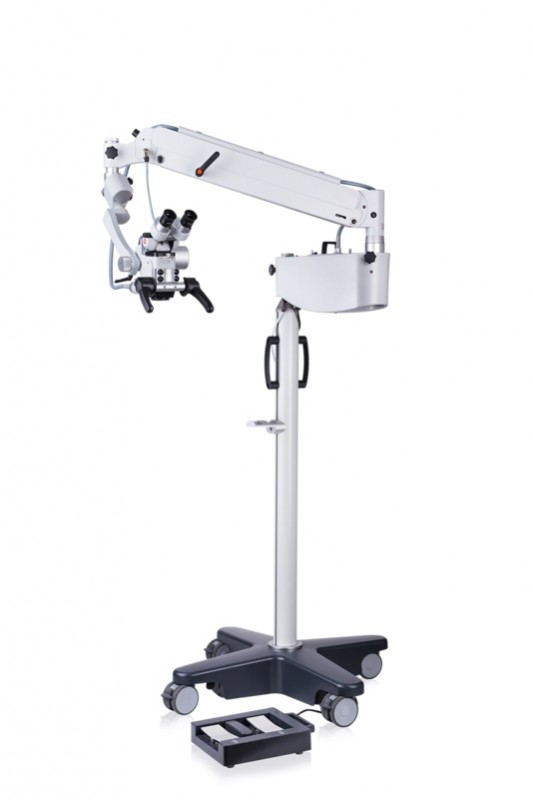

Surgical Microscope Kaps Pro ENT motorized SOM 62
Karl Kaps GmbH & Co. KG, Germany
The fully motorized surgical microscope Kaps Pro ENT motorized is extremely versatile.
The compact design allows a short working distance of the surgeon to the surgical field. The ergonomic advantage of the 0-210 ° swiveling binocular tube, which allows the surgeon to maintain a comfortable position even with often changing working distances.
The apochromatically corrected motorized 1: 6 ZOOM delivers bright, brilliant and high-contrast images with good detail recognition. The motorized fine focusing (40 mm) offers additional ease of use.
Perform variety of motor functions such as ZOOM, focus, setting the XY coupling, switching the light on and off and controlling the light intensity via the foot control panel. The hands stay with your patient.
| Kaps Pro ENT motorized | |
| Binocular tubes |
Straight tube f = 125 mm Binocular Swivel Tube 0-210°, f = 182 (optional) |
| Objective | F = 250 mm |
| Eyepieces |
WF 12.5 x V with diopter adjustment WF 10 x V with diopter adjustment (optional) Other on request |
| Magnification | 1:6 Zoom |
| Filter | Swing-in green filter |
| Illumination |
Coaxial cold light illumination (15 V / 150 W) with spare bulb LED illumination (optional) |
| Handles | Ergonomic handle, bilateral, 360°, adjustable with disengage knob |
