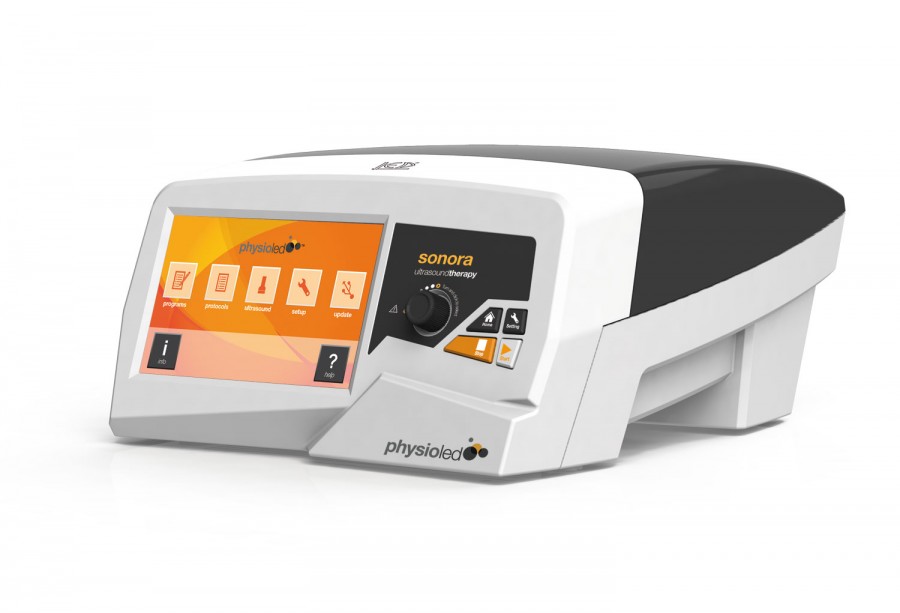

Sonara

sonora are a programmable driver units for US transducers with working frequencies from 1 up to 3 MHZ.

The unit has realized in the followings two versions: One with automatic tuning to use ultrasound transducers in the range 1 Mhz- 3 MHz. The second one combi, with automatic tuning to use ultrasound transducers in the range 1 MHz – 3 MHz together with electrotherapeutic current.

Through sonora it is possible to obtain delivery of continuous or modulated ultrasound with programmable intensity and delivery time to fit the thermo therapeutic deep treatment for different pathologic conditions.

sonora transducer handpieces can be under water used.

FEATURES
Output frequency 1.0 to 3.0 MHz
Max intensity 3.0 W/cmq
Max output direct current 30 mA*
Max output pulse current 70 mA*
Max output voltage 100 Vdc*
Power supply 90-240 Vac / 50-60 Hz
Electrical input power
70 VA / 100 VA (combi)

NEWS
• Wide range of preset protocols
• Customized programs
• Multi frequency handpieces
• Automatic recognitiion of the connected accessory
• Continuous or pulsated delivery
• Associated with electrotherapy*
