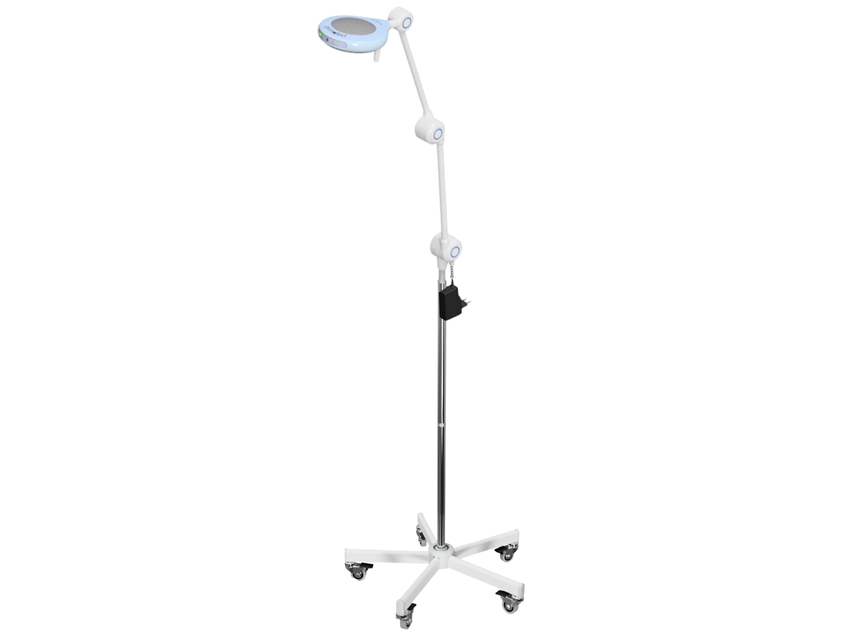

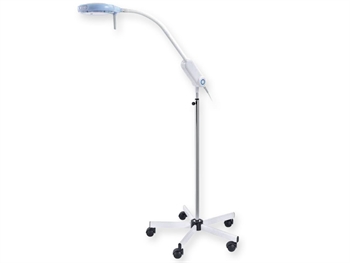

PRIMALED COLD LIGHT LAMP WITH 9 LED LENSES
Appealing design and advanced technology.

• Design: The round and ultra-flat shape of the light makes the product ergonomic and suitable for any type of installation, from the doctor’s surgery to the intensive-care unit.

• Ergo-Spring: The movement of the articulated tubular arm is servo-assisted by a torsion spring which ensures ease of movement and stability.

• 80.000 lux: Unique performance with 100.000 lux at 50 cm.

• Light intensity adjustment: six different adjustment levels by the keys on the frontal panel.
4500-5000 °K Colour temperature selection: The comparison between the two colours (K) increases the visibility of details.

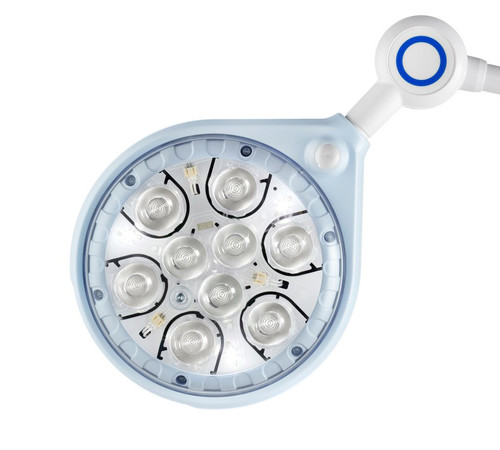

• Shadow suppression: The radial layout of the lenses and the large-diameter lamp (195 mm) allow shadow suppression and three-dimensional lighting.

• Adjustable courtesy-light: integrates ambient light with traditional concentrated light.

• Sterilizable removable grip: Allows best asepsis.

• Cold light: The reduced emission of IR rays by the LEDs as well as the low power consumption allow minimum heat emission.

• Disinfection: The smooth and rounded shape of the dome and structure make it easy to clean and disinfect.

• 50,000 hours LEDs life: The top aluminium dome allows heat exchange, thus reducing the work temperature and considerably increasing the life cycle of the single LEDs.

• Fully certified: Complies with IEC 60601-1 and 60601-1-2 general medical standards and to special standard IEC 60601-2-41 93/42 EEC and 2007/43 EC and is CE marked as a Class I medical device.

• Mechanical testing and user safety: Die-cast aluminium and tubular steel structure. The articulated arm has undergone mechanical testing for 40,000 continuous movements to ensure maximum safety for the user during use.

• Light continuity: The modular design of the LED power circuit ensures light continuity even in case of a LED fault.

The following functions are controlled by the keys on the membrane keyboard:
- on/off
- Selection of the 5000°K and 4500°K colour temperatures
- 6-level adjustment of the light intensity
- Courtesy light
Technical Specifications
• LED life: 50.000 hours
• Light intensity: 80.000 lux at 50 cm, 20.000 lux at 1 m
• Colour temperature: 4.500-5.000 °K
• Colour rendering index: 95
• Illuminated field at 50 cm: Ø 140 mm
• External diameter of the reflector: 190 mm
• Temperature increase in the operating area at 1 m: 1°C
• Adjustable height with castors: 600 mm - max 1600 mm
• Power supply: 81-240V - 50/60 Hz
• Electric absorption: 21VA
• Weight: 10 kg (trolley included)
• Made in Italy
