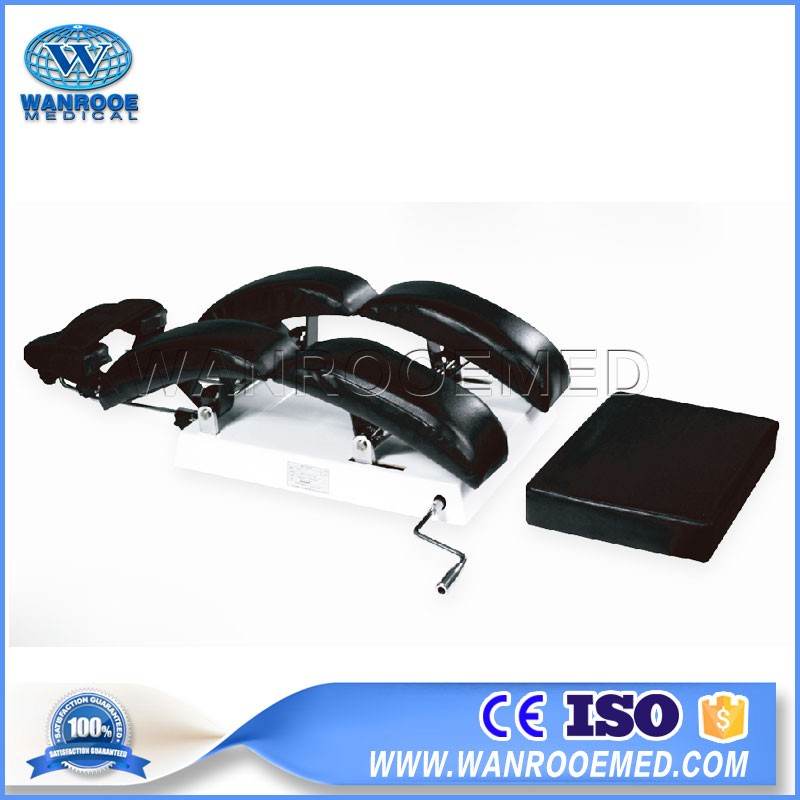

Wilsom Frame
№ - AOTA400
Wanrooe
Unique structure designed to meet the necessary surgery to patients of various range of motion of the body, conveniently for the surgical procedure and postoperative fixation. Bilateral arc plate support avoid the oppression of chest and abdomen, reducing surgical blood loss. It is convenient to adjust the width of supporter, distance, height of head supporter, feet pad position for fitting a variety of body sizes of patients. Material of abdominal support plate and head supporter is soft, so that surface curvature can be smoothly adjusted, to meet adjustment during surgery and spine reset requirement after surgery. X-ray available.
AOTA400 Specifications:
Power:220V,50HZ Voltage:20W
Max Support Length: ≥700mm
Support Surface Shelf Open Distance: 0~190mm
Spine Bucking Angle: -15°~ -75°(electrical)
Head Rest Adjusted Distance: 0~300mm
Head Rest Adjusted Height: 0~150mm(from the chasis upper plate)
Breast Pad adjusted Width: 0~80mm(Bracket axis as standard)
Max Loading of Breast Pad: 135kg
Max Loading of Head Rest: 10kg
