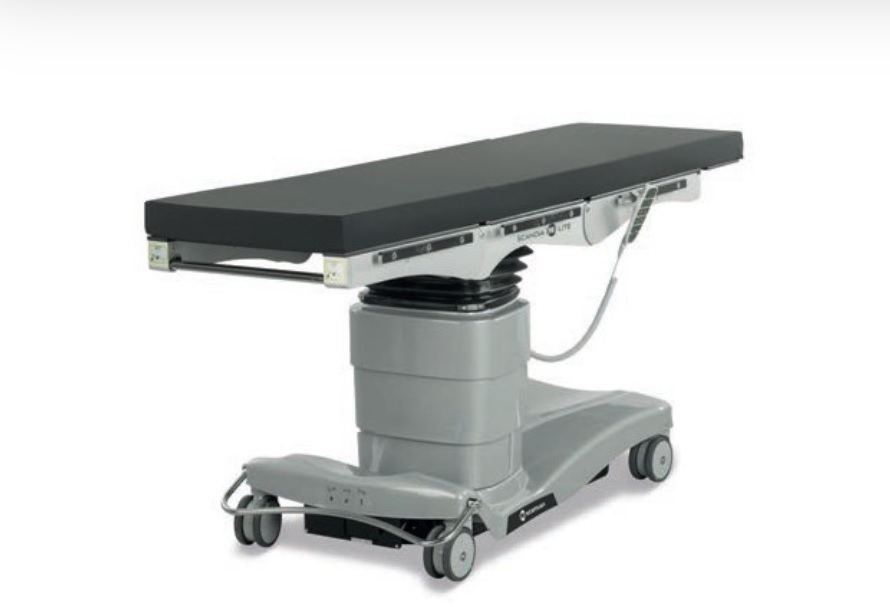

Scandia Lite surgical table
№ - sc1
Lojer - Merivaara - Finland
The Scandia Lite is a non modular surgical operating table that has been specifically designed for private clinics and simple procedures.
The Scandia Lite is the perfect choice for simple surgical procedures. The Lite offers an electro-mechanical height adjustment column with Trendelenburg combined with a manual and smooth adjustable tabletop.
Benefits of the Scandia Lite
1. HYGIENIC
• Easy to clean
• Designed to avoid fluid retention
• One piece base cover – no seams
2. MINIMUM HEIGHT
• Low minimum height of 560 mm
3. VELCRO-FREE MATTRESS
• Non slip surface
• Full length mattress
4. ACCESSIBILITY
• Curved base allowing closer proximity
onto operating area
5. CONTROL DEVICES
• Safety features incorporated:
• 2-touch hand controller
• Safety lock
• Backup control panel located on the column
• Wireless foot control (Bluetooth)
Total length 2010 mm
Width incl. accessory rails 604 mm
Mattress width 550 mm
Total weight 174 kg
Safe working load (SWL) 200 kg
Lifting capacity 454 kg
Castors Four Ø125 mm central locking twin castors, conductive
Motorized height adjustment range 560…970 mm
Motorized Trendelenburg / anti-Trendelenburg 30° / 20°
Non-motorized head section -30°…+30°
Non-motorized back section -10°…+65°
Non-motorized leg section -50°…+15°
Main power supply (EU) 24 VDC, battery operated
100-240 V ~, 50/60 Hz
Current consumption Max. 4.5 A
Ingress protection system IPX4
Electric protection class Class I (grounded), type B applied part
Internal power supply (main batteries) 2,1 Ah (52,92 Wh) Li-Ion technology (NMC), UN3481 (charge below 30 %)
Operating rate 10 %, max 2 min/18 min On/Off continuous use
